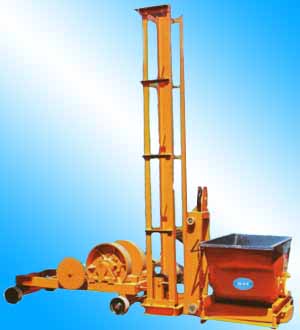

BUILDER'S hOSIT-FIXED TYPE

• Capacity: 1 Tonne
• Lifting Height: Any Height depeneding on Customer Needs
• Drive : Friction Drive Fibres
• Prime Mover 10 H.P. Electric Motor with Strater or 10 H.P. Diesel Engine
• Trolley Speed 30 mt/min
• Wire Rope 11 mm usha Martin Make
• Drive from Prime Motor Chain drive or Belt drive
• Size of Mast Angle 65 x 65 x 6 mm angle suitably braced by 35 X 35 X 6mm Angle
• Wire rope pulley: heavy duty 9" OD Deep Groope Bearing and type.
• Plat Form: MADE OUT OF 50 x 50 x 6mm Angle and of Size 5' X 3.5'
• Break Lining: 12 mm Thick Heavy Duty Induastrial Type With copper Rivets
• Rollers: Bottom and Top Rollers Fixed with Ball Bearing for Long Life and smooth Moving of plot Form.

• It is designed to Suit Motor or Engine or Both depends upon customer needs
• It is Mounted on 4 nos of C.I Wheels for easy Shifting.
• All the rolling parts are fixed with ball and tapper roller bearings.
• All the Mating parts are provided with Grease cups and Grease Nipple.
• First Quality Fibre's and brake linings are used.
